1. Products
  2. Mini Hub TBMH100
HKD

Mini Hub TBMH100

  • Frequency band

1,400.00 HK$ 1,400.00 HK$ 1400.0 HKD

1,400.00 HK$

This combination does not exist.

Add to Cart

LoRaWAN 8 channels gateway; build-in: LoRa & WiFi antenna; 5V DC USB type C 900 mA / 220V AC

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

OVERVIEW
The Mini Hub was designed to be a low-cost LoRaWAN compliant gateway utilizing a WiFi client backhaul. It is a wall-plug type with interchangeable plug options. The gateway includes a USB-C charging port that makes it ideal for mobile application and to enlarge the signal coverage. This gateway is suitable for small businesses or private use.

FEATURES

  • LoRaWAN 1.0.3

  • WiFi backhaul

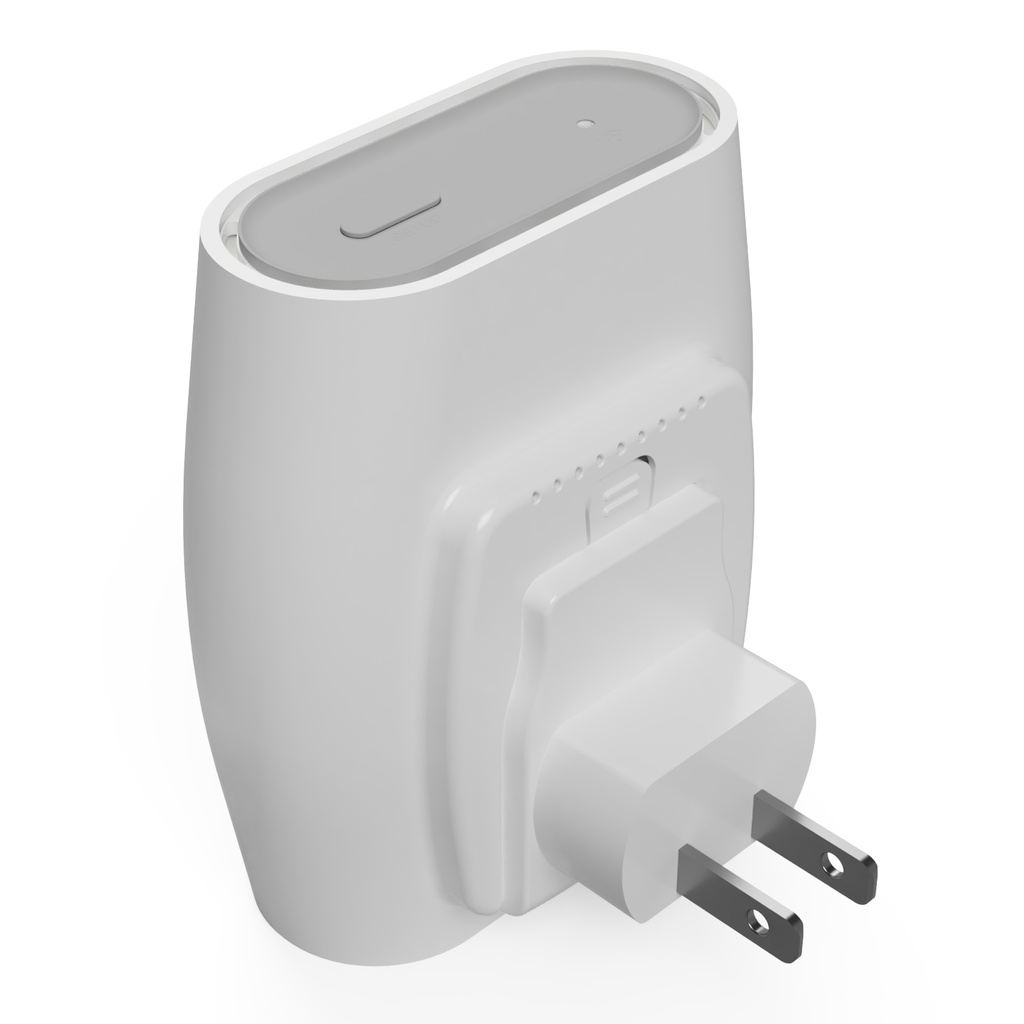

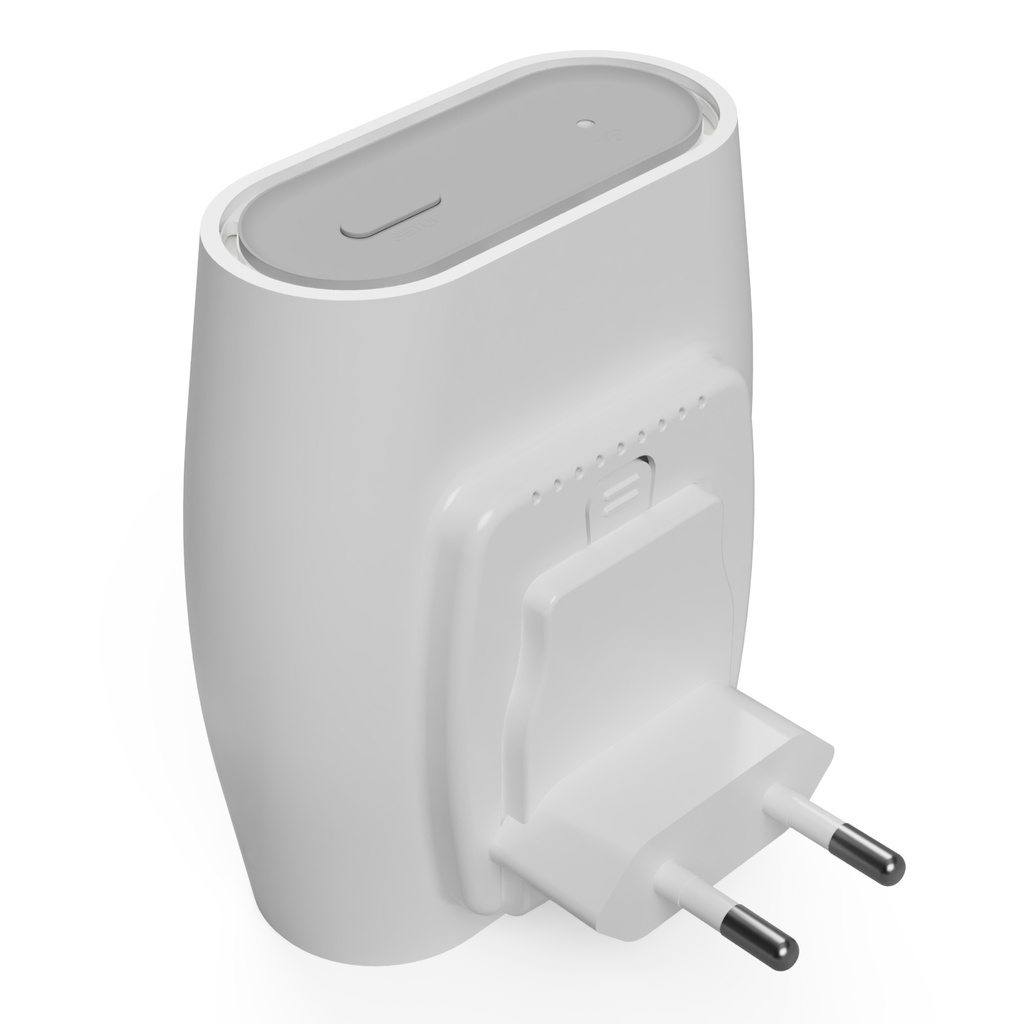

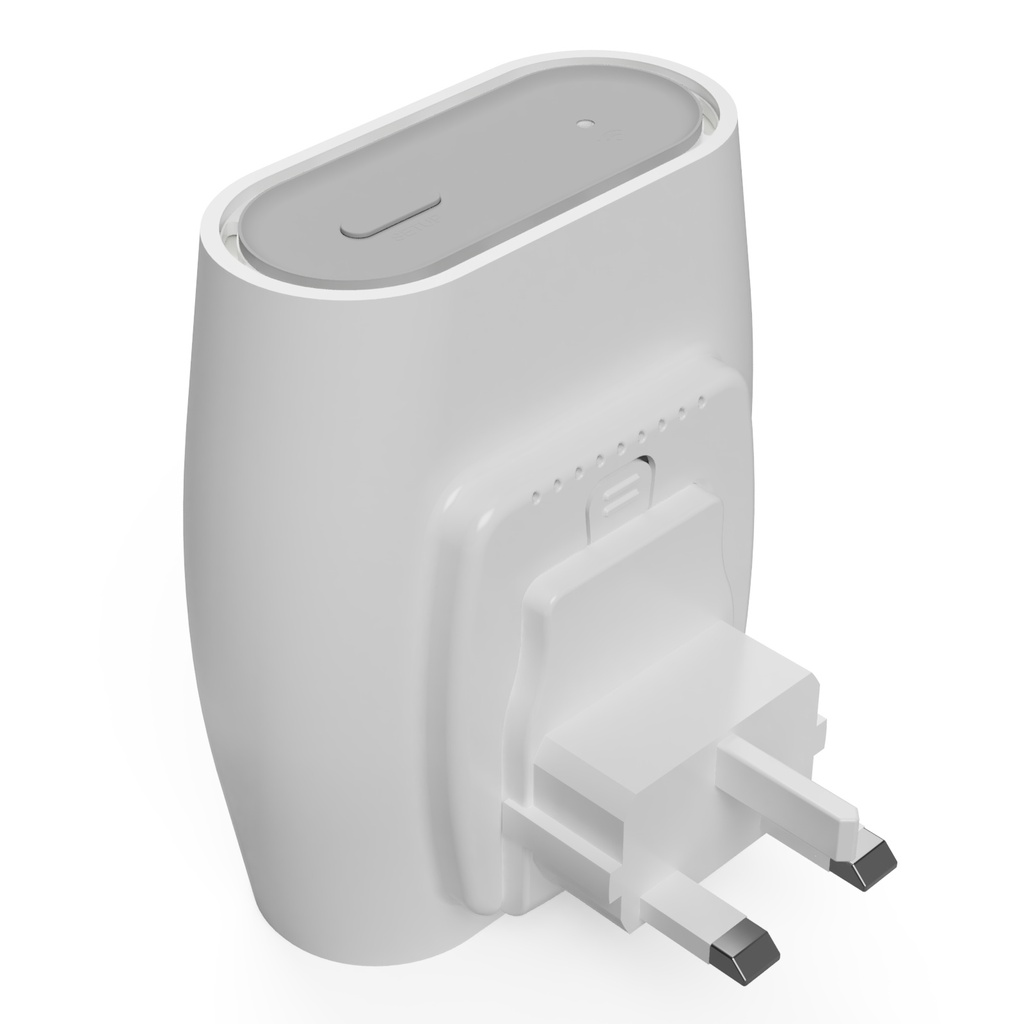

  • Wall-type plug with multiple plug options

  • Power input: Wall plug type/USB type C port

  • 802.11 b/g/n, Client Mode

  • Cost effective

  • Quick set-up

  • Compact design

  • Built-in LoRa & WiFi antenna"

BENEFITS
Wall plug type for easy installation.

GENERAL
Device NameMini Hub
ModelTBMH100-AS/EU/US
ManufacturerTabs
ReviewLoRaWAN 8 channels gateway; build-in: LoRa & WiFi antenna; 5V DC USB type C 900 mA / 220V AC
DocumentsSpecification
FUNCTIONALITY
Device TypeLoRaWAN Gateway
Internal Sensorsno
External Sensorsno
GNSSno
GNSS Antennan/a
BLEno
BLE Antennan/a
LPWAN
ProtocolLoRaWAN Gateway
Channels8
FrequencyEU 863-870 MHz, US 902-928 MHz
Tx Power27 dBm
Rx Sensitivity-140dBm
Antennainternal
Antenna Gain-2 dBi Peak, -5 dBi Avg
BROADBAND
WiFi2.4 GHz , 802.11 b, g, n
WiFi Antennainternal
Cellularno
Cellular Antennan/a
Ethernetno
POWER
SourceAdapter USB Type-C
Input5 V
Current900 mA
Outputno
Autonomieno
USER INTERFACE
LED1
Power Switchyes
ButtonsPower
USBUSB type C
MECHANICAL
Size80 x 80 x 40 mm
Weight200 g
Colorwhite
ENVIRONMENTAL
Temperature0 / 40 ℃
Humidity5 / 50 %
IP RatingIP 50
FEATURES

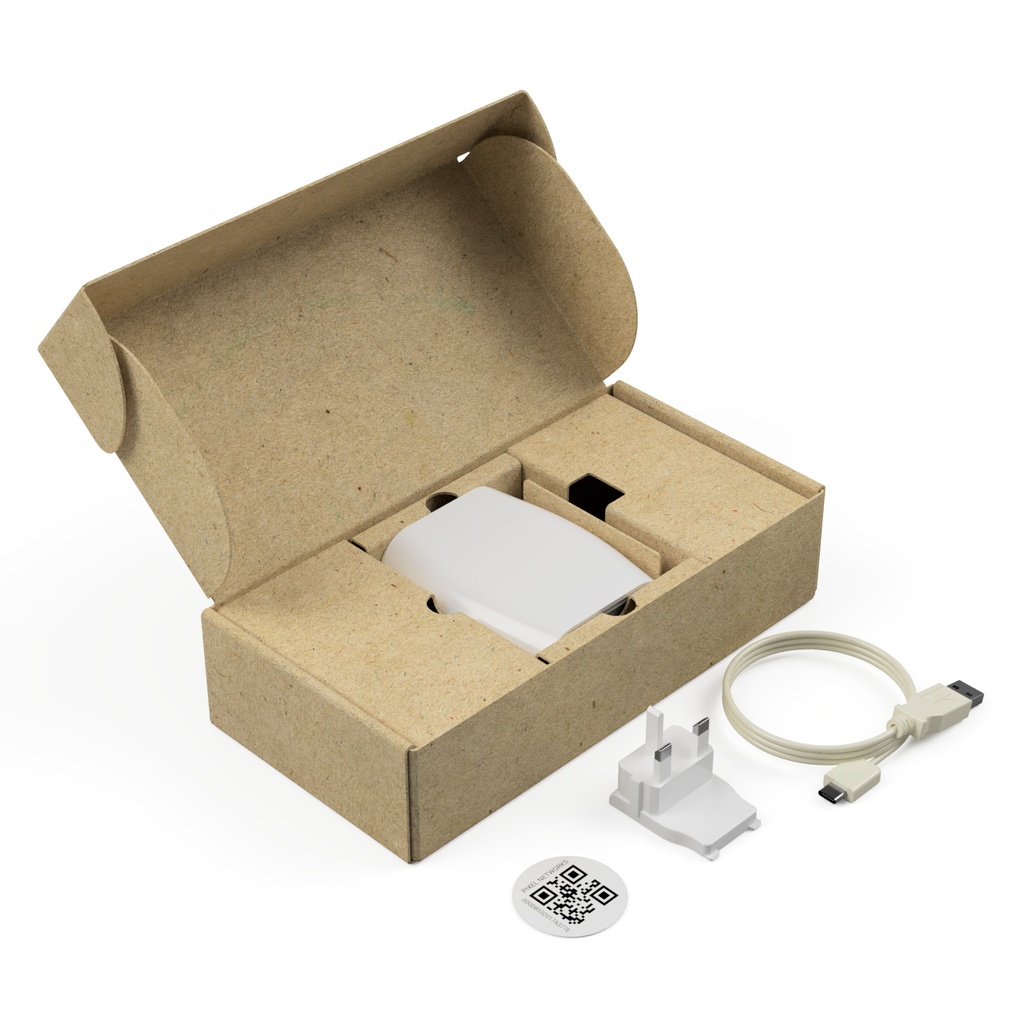

In the BoxDevice, AC/DC adapter
SoftwareTrackStation, Thingularity
Additionalno
CERTIFICATIONS
FCC IDno
ICno
OtherCE, FCC, IC, RCM, WPC, RoHS
