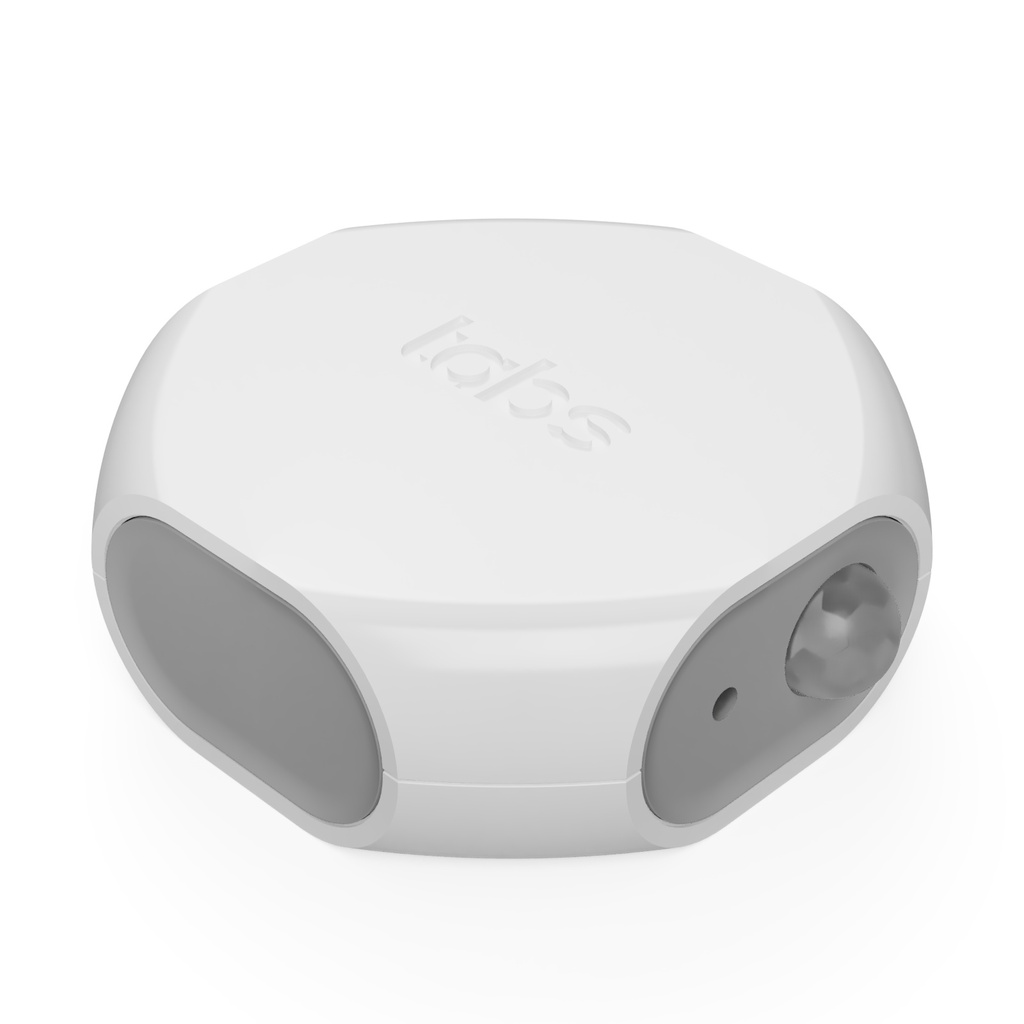

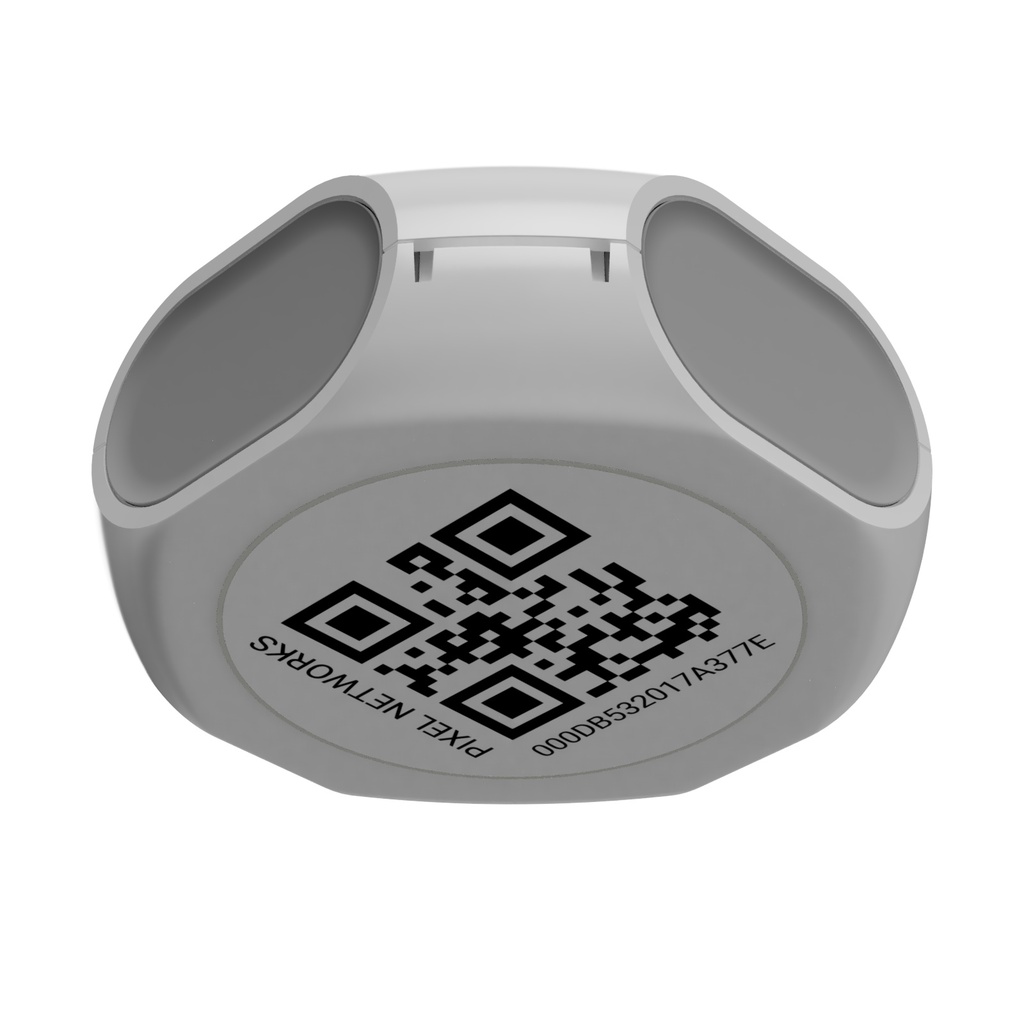

Motion Detector TBMD100

  • Frequency band

800.00 HK$ 800.00 HK$ 800.0 HKD

800.00 HK$

This combination does not exist.

Add to Cart

LoRaWAN end-node; built-in: dual PIR detectors; 3.6V 1.2Ah 1/2AA battery

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

OVERVIEW
The Motion Detector TBMD100 is designed for in-home/in-office and in-building usage for consumer or facility management applications. The design is optimized for long battery life time. Place the sensor to be sure that your home or office is secure. You can use it to make sure that all the office staff are at their work places. Use the wide-angle wall-mounted sensor to detect motion around your home when you’re away or asleep.

FEATURES

  • Compliance with LoRaWAN 1.0.2 and 1.1

  • Use up to 8 channels for LoRa transmission

  • Long battery life

  • TrackStation network server software

  • One blue LED indicator

  • Has a internal antenna"

BENEFITS
Сompact size, long battery life, possibility of placement in any place and on any surface .

GENERAL
Device NameMotion Detector
ModelTBMD100/AS/EU/US
ManufacturerBrowan Communications
ReviewLoRaWAN end-node; built-in: dual PIR detectors; 3.6V 1.2Ah 1/2AA battery
FUNCTIONALITY
Device TypeMotion Sensor
Internal SensorsDual Passive Infrared detectors and Fresnel Lens with 123° horizontal and 93° vertical view
External Sensorsno
GNSSno
GNSS Antennan/a
BLEno
BLE Antennan/a
LPWAN
ProtocolLoRaWAN A/C
Channels8
FrequencyAS 923 MHz, EU 863-870 MHz, US 902-928 MHz
Tx Power19 dBm conducted
Rx Sensitivity-140 dBm
AntennaInternal
Antenna Gain-2 dBi Peak, -5 dBi Avg
BROADBAND
WiFin/a
WiFi Antennan/a
Cellularn/a
Cellular Antennan/a
Ethernetn/a
POWER
Source3.6V 1⁄2 AA Li-SOCl2 1200 mAh battery
Input3.6 V
Current135 mA / 5 uA
Outputn/a
Battery life4 years
USER INTERFACE
LEDsOne blue LED
Power Switchbattery
Buttonsno
USBno
MECHANICAL
Size50 x 20 x 50 mm
Weight30 g
Colorwhite
ENVIRONMENTAL
Temperature-20 / +50 ℃
Humidity5 / 50 %
IP RatingIP 50
FEATURES
In the BoxDevice, 1 battery
Softwareno
AdditionalBattery Monitoring
CERTIFICATIONS
FCC ID2AMUGTBSP100
IC22980-TBSP100
OtherCE, ROHS REACH
