Handheld Field Tester RHF4T003

  • Frequency band

4,200.00 HK$ 4,200.00 HK$ 4200.0 HKD

4,200.00 HK$

This combination does not exist.

Add to Cart

LoRaWAN end-node; built-in: GNSS SiP module, temperature, humidity sensors; TS-MT-BL-5C 3.7V 1,2mAh

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

OVERVIEW
The LORA Network Tester handheld roadside meter is equipped with two LoRa modules. It can realize 20dBm LF band (434MHz/470MHz) and 20dBm HF band (868MHz/915MHz) free switching. Built-in high-precision GPS module captures current latitude and longitude for accurate positioning in real time. The built-in temperature sensor accurately detects the current ambient temperature changes. The LCD screen can display information such as time, battery level, and SD card status. In the test mode, LoRa data transmission and reception, downlink rssi snr, GPS information will be displayed on the LCD screen in real time. The user can check the current test results on the screen and decide whether the location of the gateway deployment and the location of the node deployment are optimal or not.

FEATURES

  • Support for LoRa/LoRaWAN communication

  • LCD /uplink rssi snr/downlink rssi snr

  • GPS accurate positioning, positioning data uploaded to the cloud

  • Real-time monitoring of ambient temperature

  • High-precision membrane buttons, a variety of parameters can be configured

  • Calculate the packet loss rate

BENEFITS
The handheld Field tester is mainly used for the field construction test of LoRa network. Guide the relevant personnel in network planning and network optimization.

GENERAL
Device NameHandheld Field Tester
ModelRHF4T003-AS/EU/US
ManufacturerRisingHF
ReviewLoRaWAN end-node; built-in: GNSS SiP module, temperature, humidity sensors; TS-MT-BL-5C 3.7V 1,2mAh
FUNCTIONALITY
Device TypeHandheld Field Tester
Internal SensorsTemperature, humidity sensors
External Sensorsno
GNSSGPS
GNSS AntennaExternal
BLEno
BLE Antennan/a
LPWAN
ProtocolLoRaWAN A/C
Channels8
FrequencyAS 923 MHz, EU 863-870 MHz, US 902-928 MHz
Tx Power20 dBm
Rx Sensitivity-139 dBm
AntennaExternal
Antenna Gain-2dBi Peak, -5dBi Avg
BROADBAND
WiFin/a
WiFi Antennan/a
Cellularn/a
Cellular Antennan/a
Ethernetn/a
POWER

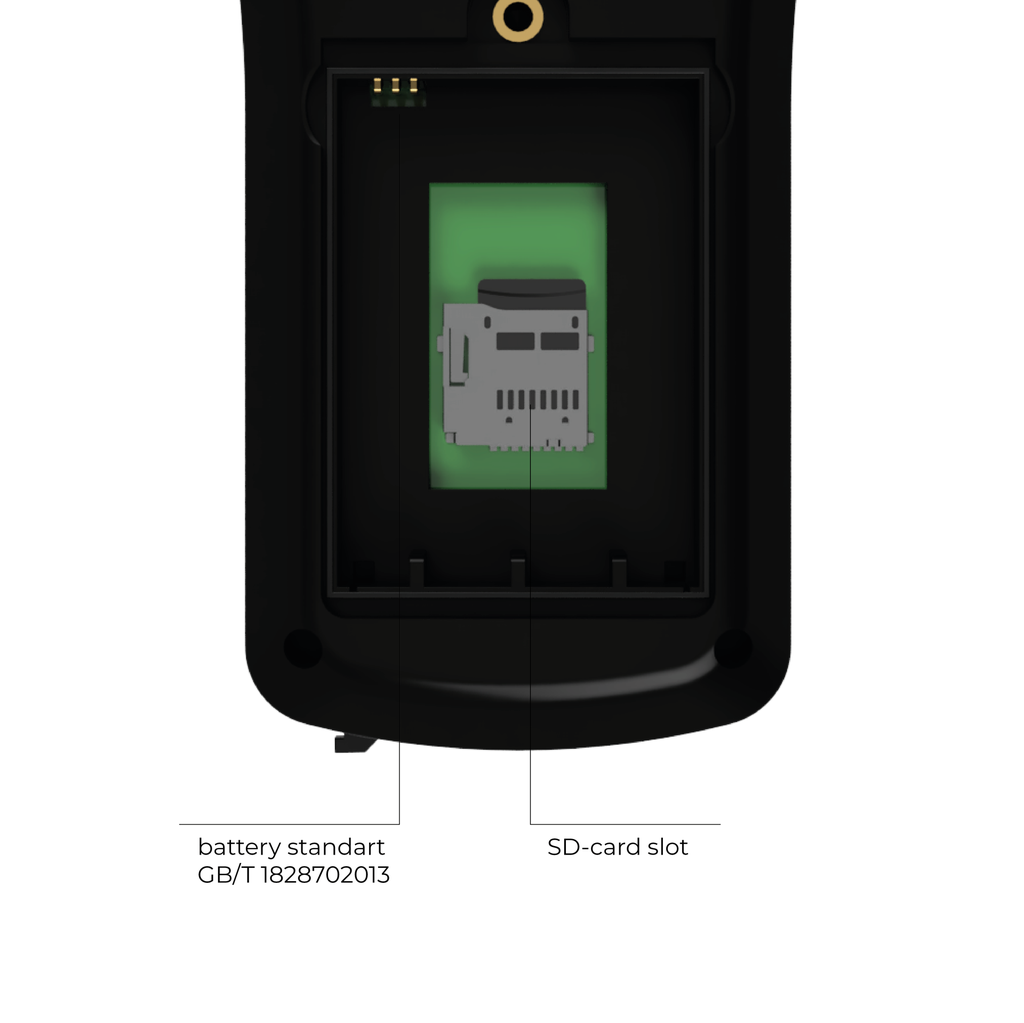

Source1150 mAh rechargeable battery
Input5 V
Current21.8 mA / 36 uA
Outputno
Battery lifeabout 6 hours
USER INTERFACE
LEDsIndicator
Power SwitchPress and Hold the Power Button
ButtonsEsc/Return, Confirm/Enter, Direction Key, Delete/Backspace, Number Input, AreaPower Key
USBMini USB
MECHANICAL
Size167 x 67 x 27 mm
Weight160 g
Colorblack
ENVIRONMENTAL
Temperature-20 / +70 ℃
Humidity10 / 85%
IP RatingIP 50
FEATURES

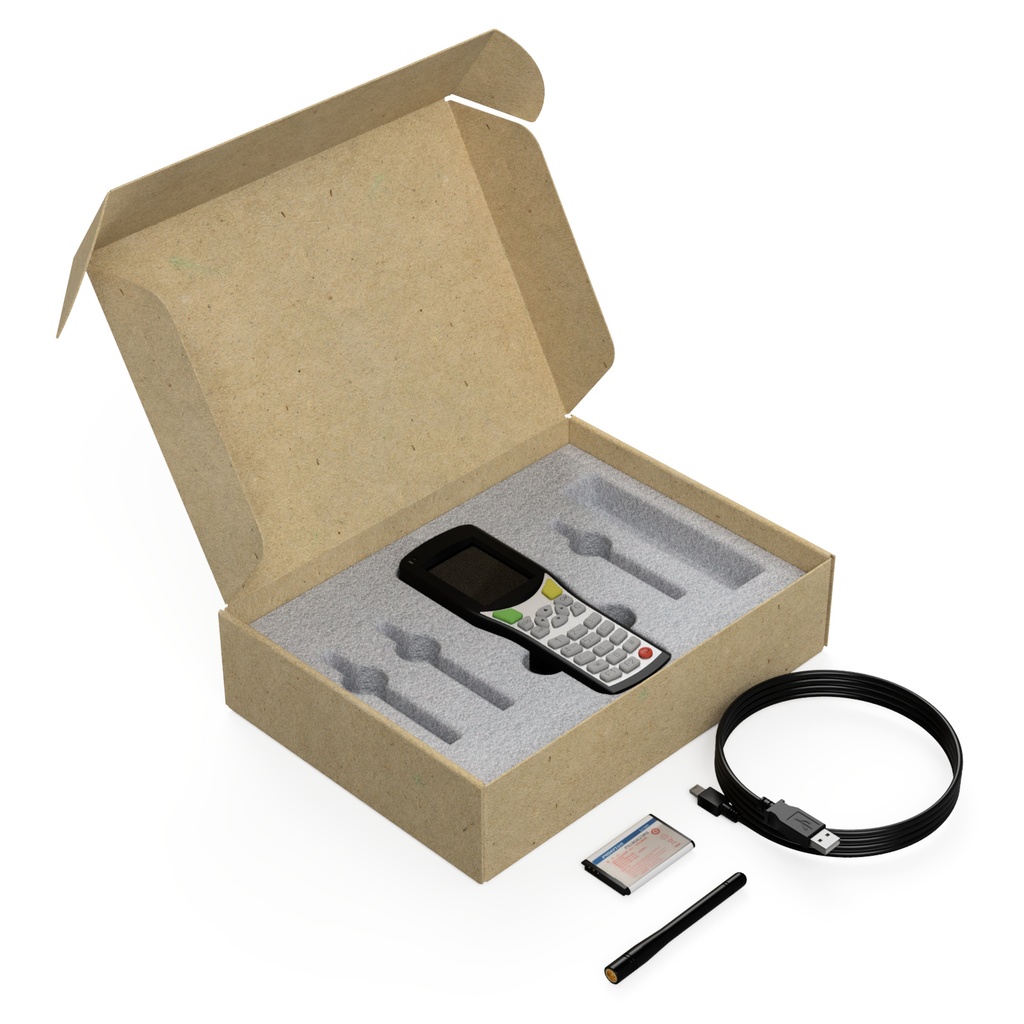

In the BoxDevice, antenna, battery
Softwareno
AdditionalBattery Monitoring
CERTIFICATIONS
FCC IDno
ICno
OtherLoRaWAN Alliance Certification
