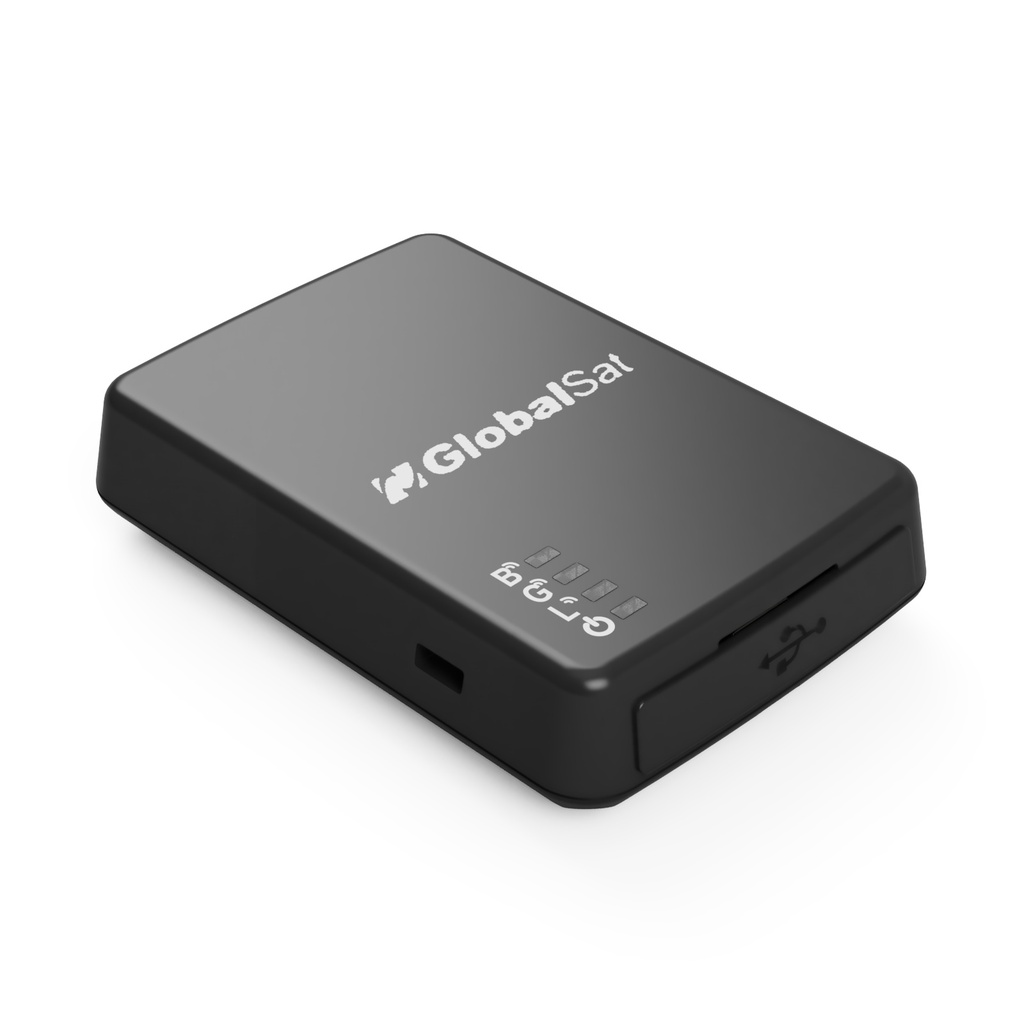

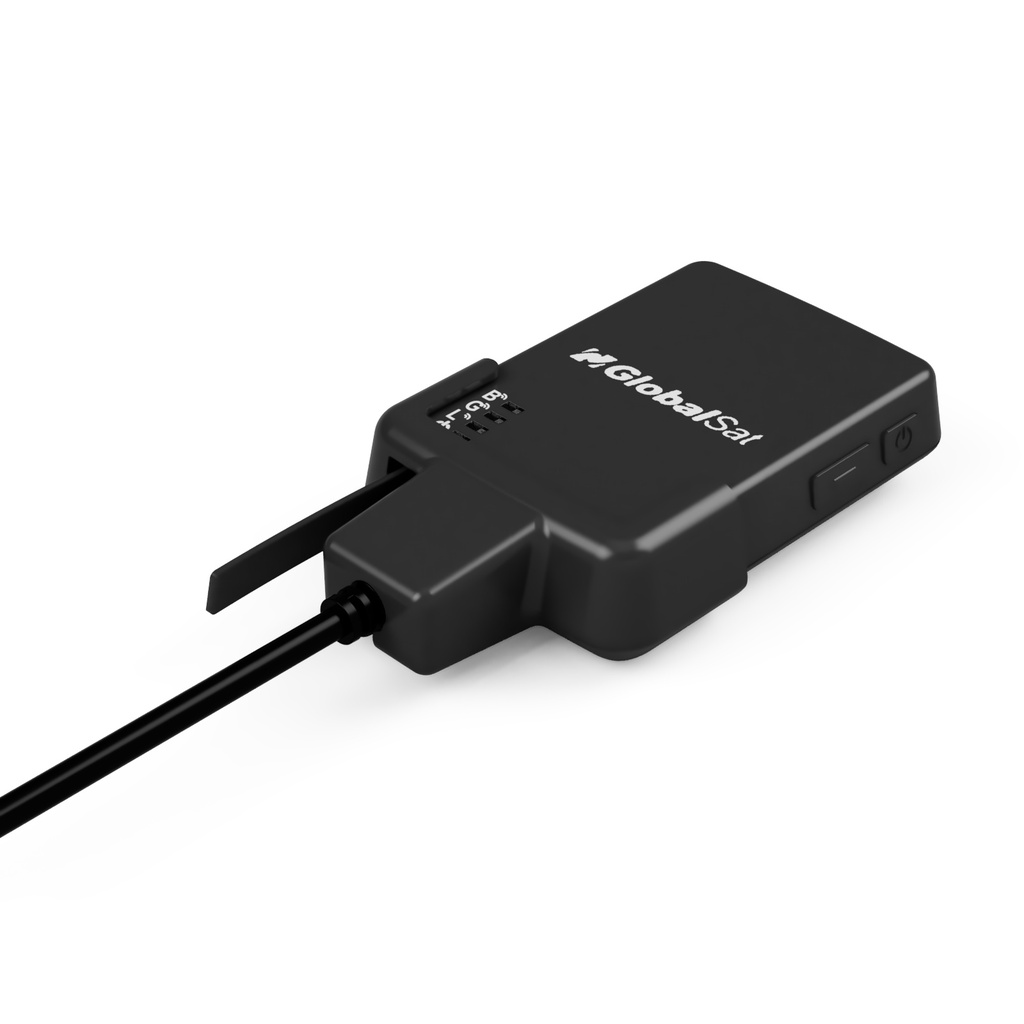

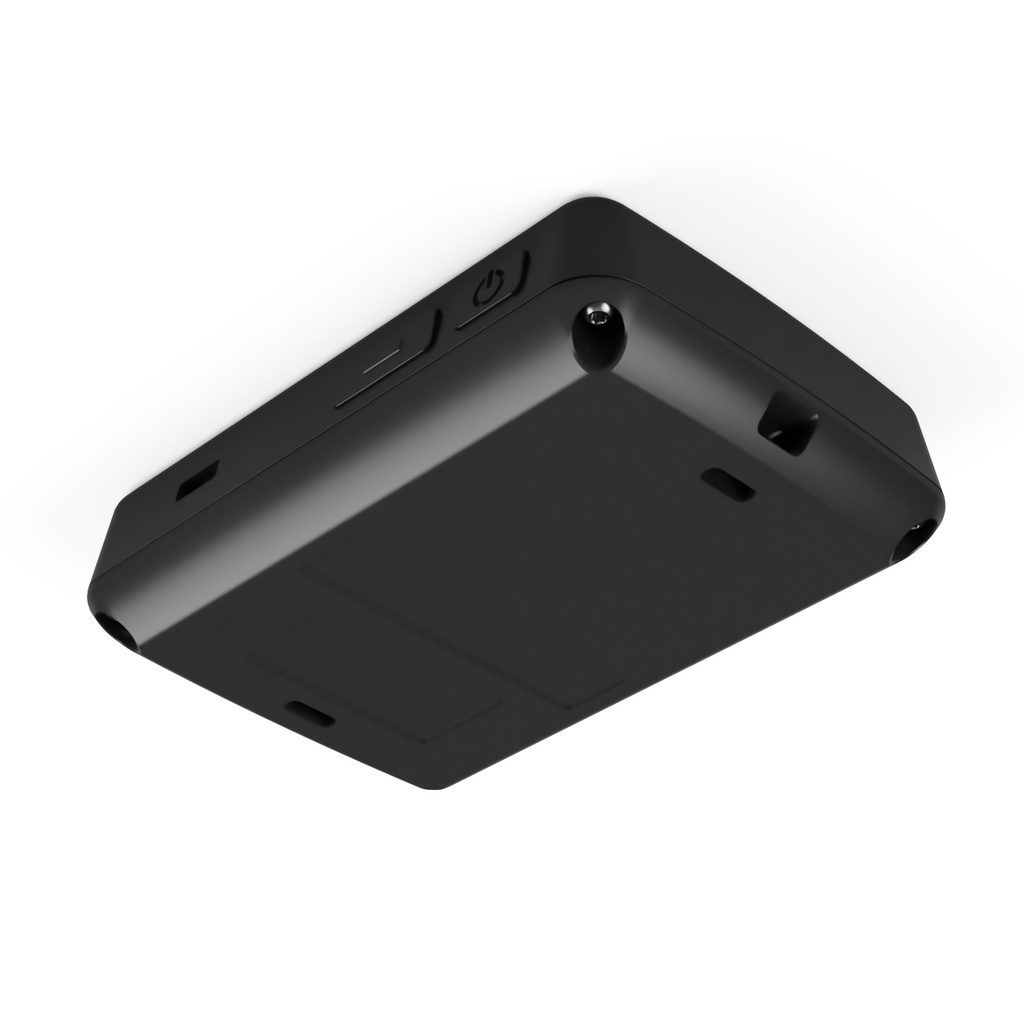

Compact Flexible Tracker LT-501H

  • Frequency band

1,200.00 HK$ 1,200.00 HK$ 1200.0 HKD

1,200.00 HK$

This combination does not exist.

Add to Cart

LoRaWAN end-node; built-in: GNSS SiP module, 3-axis accelerometer, BLE, alert button; 3.6 V 1.2 Ah built-in battery

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

OVERVIEW
Compact Flexible Tracker LT-501H is  specifically designed for both indoor and outdoor monitoring of objects. Industrial design allows you to use the device in almost any environment. It is compact, light, and very easy to use. The device is also equipped with a replaceable battery. The powerful battery provides a long period of operation.

FEATURES

  • Supports LoRaWAN™ Class A/Class C

  • Outdoor/Indoor geolocation

  • Long-distance transmission

  • Regular/Real-time tracking (Report interval, Enable/Disable GPS, Buzzer, Ping)

  • Built-in 3 axis accelerometer for motion detecting

  • Built-in BLE for indoor positioning

  • Setting via BLE

  • Supports buzzer for alert

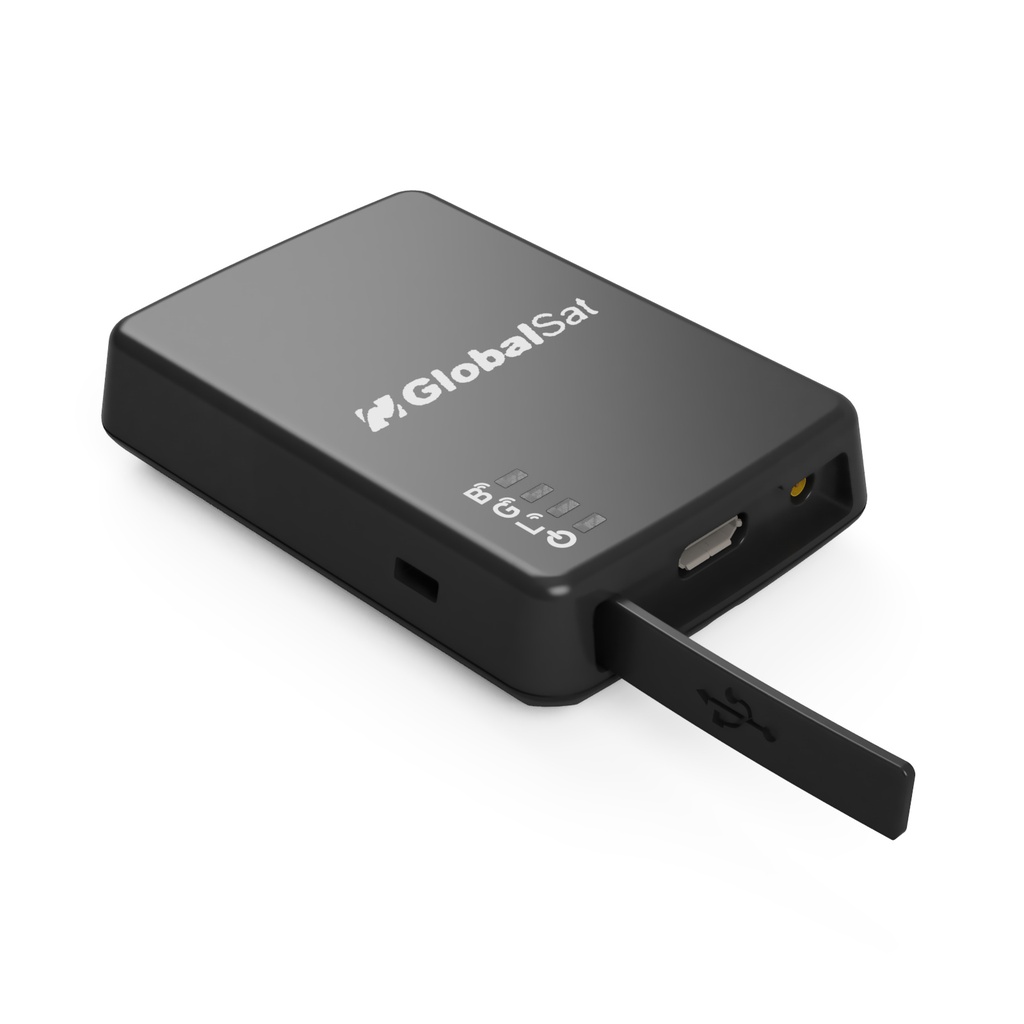

  • Micro USB connector"

BENEFITS
It is compact, light and very easy to use.

GENERAL
Device NameCompact Flexible Tracker
ModelLT-501H/AS/EU/US
ManufacturerGlobalSat WorldCom
ReviewLoRaWAN end-node; built-in: GNSS SiP module, 3-axis accelerometer, BLE, alert button; 3.6 V 1.2 Ah built-in battery
FUNCTIONALITY
Device TypeGPS Tracker
Internal Sensors3-Axis accelerometer
External Sensorsno
GNSSGPS/GLONASS
GNSS AntennaInternal/External (optional)
BLEBLE 4.0
BLE AntennaInternal
LPWAN
ProtocolLoRaWAN A/C
Channels8
FrequencyAS 923 MHz, EU 863-870 MHz, US 902-928 MHz
Tx Power20 dBm
Rx Sensitivity-128 dBm
AntennaInternal
Antenna Gain-2 dBi
BROADBAND
WiFin/a
WiFi Antennan/a
Cellularn/a
Cellular Antennan/a
Ethernetn/a
POWER
Sourcerechargeable batter, Micro USB
Input3.6 V, 5 V
Current140 mA / 5 uA
Outputno
Bettery life1 month
USER INTERFACE
LEDs4 x color LEDs
Power SwitchButton
ButtonsPower Button, Function Button
USBMicro USB
MECHANICAL
Size63.3 x 43.0 x 15.5 mm
Weight35 g
Colorblack
ENVIRONMENTAL
Temperature-40 / +60 ℃
Humidity5 / 95%
IP RatingIP 67
FEATURES

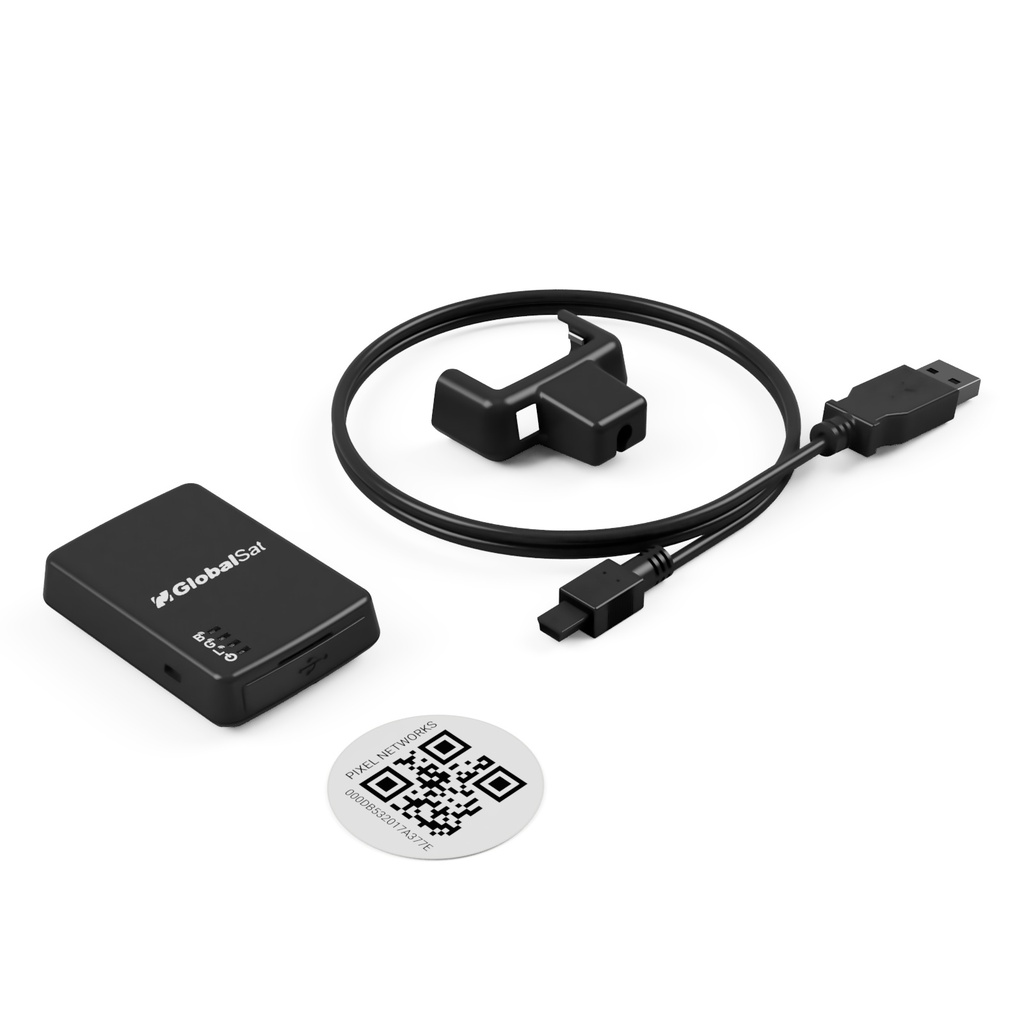

In the BoxDevice, 1 D Size Battery, Micro USB Cable
Softwareno
AdditionalConfigurable settings via BLE
CERTIFICATIONS
FCC IDFCC
ICno
OtherCE, TELEC
